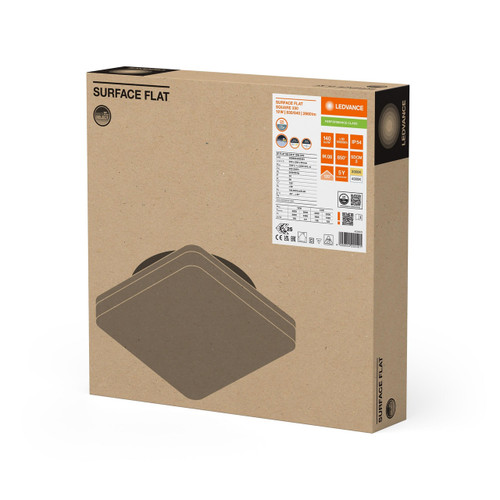

SURFACE FLAT SQUARE SQ 330 P 19W ML 83040

Versatile square wall and ceiling luminaire. : Type of protection: IP54 (wall and ceiling). Impact resistance: IK08. Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C). Polycarbonate (PC) housing, PC-diffuser. Ambient temperature in operation: -20…+45 °C. Glow Wire Test according to IEC 60695-2-12: 850 °C. 5-pole terminal block, cable cross section up to 5 x 2.5 mm². Through-wiring possible. Indoor use only, not suitable for outdoor use. Sensor version with high frequency sensor, corridor- and grouping function. : Easy upgradeability of light source, driver and sensor (EVERLOOP design). Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver. Indoor luminaire with high luminous efficacy up to 140 lm/W. High color consistency with SDCM 3. Tool-free electrical connection due to push button connector. Very homogenous light with a slight backlight effect. Extended services such as energy monitoring and remote maintenance possible with DALI versions. 5 years guarantee. : Direct replacement for surface luminaires with integrated CFLni lamps. Corridors. Stairways. Bathrooms. Foyers. : EVERLOOP luminaire: upgrades and replacements available. Decorative silver frame separately available.
